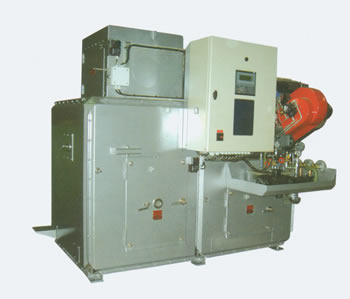

Introduced leading technology from North America Marine Design & Research Institute, NMDR-FOG series incinerator is designed as your ideal choice for anti-pollution on all kinds of vessels, offshore platforms and land. Large burning capacity; Compact structure; Dismountable design is easy for installation and maintenance. After burning the wastes, the flue gas coming out is free of colors or smell; the little slag left is also free of poison or virus without causing the second pollution to the nature. Auto-operation; remote monitoring and control; the whole burning duration is monitored and controlled via PLC automatically; chamber and flue gas temperature can be automatically regulated within setting temperature range. The incinerator is equipped with a whole set of protection device to make sure of safe operation. The incinerator complies with MARPOL 73/78 Convention, Anne× V&VI as well as IMO Resolution MEPC. 76 (40) and has been approved by CCS, DNV, LR, GL, ABS, NK, BV etc.. Technical Data:
Type
Ma× Capacity
Rated Consumption
Dime nsions
L×
W× H
mm
Weight
kg
Flue Gas Duct
DN
Rem -ark
Kca/h
kw
Slu- dge
l/h
IMO spec
Sew- age
l/h
Solid Waste Feed
-ing
Appro×. fuel
Kg(ma×)
Ra- ted EL. Po- wer
kw
NMDR-
FOG-120
180.00
210
22
10
200
l/chg
11*
8
1013 × 1457 × 1834
1450
200
Flue gas fan:
115kg
NMDR-FOG (S)-120
180.00
210
-
-
200
l/chg
8～12kg/h
7
1013 × 1457 × 1834
1430
200
Flue gas fan:
115kg
NMDR-
FOG-200
400.00
465
50
30
400
l/chg
21*
15
1350 × 1890 × 1960
3020
300
Flue gas fan:
326kg
NMDR-FOG (S)-200
400.00
465
-
-
400
l/chg
20kg/h
11
1350 × 1890 × 1960
2980
300
Flue gas fan:
326kg
NMDR-
FOG-400
500.00
580
65
30
400
l/chg
21*
15
1350 ×
1890 × 1960
3020
300
Flue gas fan:
326kg
NMDR-FOG (S)-400
500.00
580
-
-
400
l/chg
28 kg/h
11
1350
×
1890 × 1960
2980
350
Flue gas fan:
326kg
NMDR-
FOG-500
730.00
850
95
30
Cont.
36kg/h
27
2436
× 1956 ×
2117
4900
400
Flue gas fan:
326kg
NMDR-FOG( S)-500
730.00
850
80
30
Cont
/Auto
72kg/h
33.5
5330 × 1850 × 2235
7500
400
Flue gas fan:
600kg
NMDR-
FOG-1200
1032.00
1200
125
30
800
l/chg
21*
40
4585 × 2160 × 1975
7500
500/600
Flue gas fan:
600kg
NMDR-
FOG-1500
1290.00
1500
160
30
800
l/chg
21*
50
4585 × 2160 × 1975
7500
Bilge water
cap- acity 250 l/h
* e×pected daily consumption when burning IMO sludge
